Floorplan - 2012 Newmar Essex 4544
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1 of 41
+41- Back To School Sale Price: $349,777
- List Price: $389,980
- Discount: $40,203
-
45ft long
-
42,200 lbs
-
Sleeps 5
-
3 slides
-
Cummins ISX 500 Hp

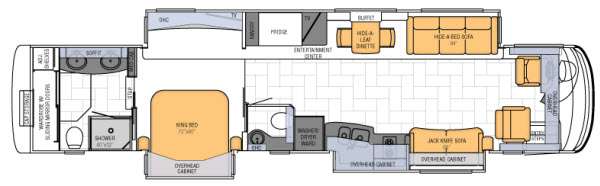

4544 Floorplan
4544 Floorplan
Specifications
Specifications
| Sleeps | 5 | Slides | 3 |
| Length | 44 ft 11 in | Ext Width | 8 ft 6 in |
| Ext Height | 12 ft 11 in | Int Height | 7 ft |
| GVWR | 52000 lbs | Dry Weight | 42200 lbs |
| Cargo Capacity | 9800 lbs | Fresh Water Capacity | 105 gals |
| Grey Water Capacity | 65 gals | Black Water Capacity | 45 gals |
| Furnace BTU | 50000 btu | Fuel Type | Diesel |
| Miles | 67996 | Engine | Cummins ISX 500 Hp |
| Chassis | Spartan | VIN | 4VZAU1E92CC075547 |
Description
Description
Triple Slide Essex Motor Home Class A, Rear Bath w/Shower, Toilet, Wardrobe w/Sliding Mirror Doors, Adjustable Shelves, Dbl. Lav., Med. Cab., King Bed Slide, Half Bath, Washer/Dryer, Dbl. Kitchen Sink/2-Burner Range/Jack-Knife Sofa Slide, Hide-A-Bed Sofa/Hide-A-Leaf Dinette/TV/Entertainment Center/Refrigerator/Pantry/TV Wall Slide, Overhead Cabinets Throughout & Much More.
Features
Features
Standard Features (2012)
Chassis Features
- Spartan® K2 Chassis with IFS
- Cummins® ISX 500 Hp
- Allison® 4000 MH Transmission
- Tag Axle
- Automatic Traction Control
- Comfort Drive™ Steering with Power Column and Adjustable Control
- Accuride® ACCU-SHIELD™ Non-Polish Aluminum Wheels
- HWH® Four Point Hydraulic Jacks with Single-Touch Control and Chassis Air Leveling
- Power Tilt and Telescope VIP Smart Wheel® with Burl Wood
- Memory Settings for Driver’s Seat, Pedals, Steering Wheel and Exterior Mirrors
- Cruise Control
- Recessed Fuel Fills with Crossover to Fill from Either Side
- Back-Up Alarm
- Anti-Lock Braking System
- Front Disc Brakes
- Electronic Chassis Information Display in Dash
- Tire Pressure Monitor System
- Chassis Service Center
- Leece-Neville 270-Amp Alternator
- 55-Degree Cramp Angle
- Remote Engine Start Station
Air Conditioning & Heating
- Three 15M Penguin™ Heat Pump Central Air Conditioners with Remote Control Thermostat
- Dash Heater and High-Output Air Conditioner
- Driver/Passenger Dash Overhead Ventilation System
- Hydronic Zone Heating System
- Roof Air Conditioning Drainage System
Appliances & Accessories
- 30" Convection Microwave Oven
- Two-Burner Recessed Cooktop
- Range Cover of Matching Countertop Material
- Norcold® 12 Cu. Ft. Four-Door Refrigerator with Auto Defrost, Icemaker and Water Dispenser
- One-Piece Washer/Dryer Prep
- Sony® 40" LCD TV in Living Area
- Sony® 40" LCD TV in Bedroom
- TripTek™ Electronic Travel Information (Displayed on Rearview Monitor)
- Sideview Cameras with Image Displayed on Rearview Monitor Screen
- Surround Sound System with CD/DVD/Blu-ray Player
- Bose® Wave® Radio with CD Player and Alarm Clock in Bedroom
- Cable TV Connection
- Xite® AM/FM/SIRIUS® Satellite Radio with CD and Touch Screen Monitor (Does not include SIRIUS monthly subscription)
- "Nav-N-Go"® Navigation System Displayed through Dash Touch Screen Monitor
- Air Horns
- 8.5" x 11" Safe in Bedroom Wardrobe
- Pre-programmed Universal Remote Control
- TV Antenna with Power Lift
- High Definition Component Wiring and HD-ready Video Switching System
- Blu-ray CD/DVD Player in Bedroom
Cabinets & Furniture
- Milano Cherry Full Overlayed Square-Raised Cabinet Doors
- Hidden-Leaf Dinette Table with Corian® Top and Four Chairs (Two Fixed, Two Folding)*
- Polished Corian® Countertop in Kitchen with Undermounted Solid Surface Sink and Flush Sink Covers
- Polished Corian® Countertop in Bathroom with Integrated Bowl
- Polished Corian® Countertop on Bedroom Nightstands
- Residential-Style Full Extension Ball Bearing Drawer Guides
- Drawers with Dove Tailed Sides
- Villa™ Furniture
- Ultraleather/Vinyl Heated Driver Seat with Eight-Way Power, Power Lumbar and Power Recline
- Ultraleather/Vinyl Heated Passenger Seat with Eight-Way Power, Power Lumbar, Power Recline and Power Footrest
- Cedar Paneling in Rear Wardrobe
- Pullout Pantry Shelves, Standard on most Floorplans
- Shoe Storage Shelves Recessed into Rear Cap Wardrobe
- Concealed Hinges on Cabinet Doors
- Molded Silverware Divider Tray
- King Bed with Hardwood Raised-Panel Bed Base
- Plush Pillow Top Mattress
Electrical Features
- 12.5 kW Cummins Onan® Diesel Quiet Generator on Hydraulic Slide and Auto Changeover
- 50-Amp Electrical Service with Flexible Cord on Power Cord Rewind Reel
- Four 6-Volt House Batteries on Pullout Tray
- 110-Volt Exterior Receptacle
- 12 Volt Auxiliary Recept on Dashboard
- 5-Watt Solar Panel
- 2,800-Watt Pure Sine Wave Inverter with Automatic Generator Start
- Midship Side Turn Signals
- Recessed Docking Lights
- Recessed Halogen Lights in Ceiling and Overhead Cabinets
- Switched Receptacle for Engine Block Heater
- Lighted Wardrobes with Automatic Switches
- Mood Lights in Lambrequins, Kitchen Valance and Bed Base
- Daylight Headlight System
- Battery Disconnect Switch for House Battery
- Emergency Engine Start Switch
- Exterior Security Lights, One Installed on Each Side
- Generator Automatic Start Feature-On Low Battery or Thermostat Temperature Setting
- ICC Light Flasher Switch
- Interior Courtesy Lights
- Lights in Exterior Storage Compartments on Automatic Switches
- Slideout Information Voice Module
- TV Jack on the Exterior Door Side of Unit
- Silverleaf Multiplex Control System
Exterior Features
- Full-Paint Masterpiece™ Finish with Super Clear Coat and Front Protective Film
- One-Piece Bonded Windshield
- Convex Exterior Chrome Mirrors with Remote Control, Defrost and Turn Signals Indicators and Sideview Cameras
- Dual Latch Front Door with Power Flush Stepwell Cover
- Exterior Storage Compartments Finished with Cargo Liner
- Fiberglass Roof with Walkable Decking
- Four Point Hydraulic and Air Leveling Jacks with Single Touch Control
- Gelcoated Fiberglass Exterior Sides, Front and Rear Caps
- 15,000 lb. Towing Hitch with Two Extra 14-Gauge Wires
- Keyless Entrance Door with Door Bell and Touch Pad
- Mud Flaps
- Rear Protective Tow Guard with Stainless Steel Newmar Name Cutout
- Undercoating
- Acrylic Assist Handle at Entrance Door
- Automatic Step for Entrance Door
- Holding Tank Levels Displayed in Exterior Water Works Compartment
Interior Features
- Designer Feature Ceiling
- Power Duo Day/Night Privacy Window Shade (Windshield and Driver/Passenger Side Windows)
- Lined Day/Night Pleated Window Shades and Lambrequins
- Polished Corian Window Sill
- Polished-Porcelain Floor Tile in Kitchen, Bathroom and Entrance Area
- Raised-Panel Interior Passage Doors
- Power-Activated Sun Visors
- 10 Bc Fire Extinguisher, Carbon Monoxide and Smoke Detectors
- Interior Assist Handle at Main Entrance Door
- Quilted Bedspread, Matching Bed Skirt and Accent Pillow
Plumbing & Bath Features
- Demand Water System with Aquajet™ “ES” Pump
- Exterior Convenience Wash Station-Hot/Cold Water, Soap & Towel Dispenser
- Thetfort Aria Sculptured China Stool in center bathroom (Thetford Vacuum Flush Stool in Rear Baths)
- Two Monitor Panels (One Interior and One is Exterior Water Compartment)
- MANABLOC Plumbing System
- Monoplex Water Pump Switches Located in Bathroom, Kitchen and Near Gate Valves
- Auto Water-Fill System
- Whole House Water Filter
- Corian Shower with Inserts
- Power Rewind Water-Hose Reel
- Sewage and Grey Holding Tank Rinse
Construction Features
- Composite One-Piece Gelcoat Exterior Sidewall
- 5/8" Foam Insulation Laminated in Sidewalls and Ceiling
- Aluminum-Frame Sidewalls and Roof Construction, 16" on Center
- Manually Operated Hold to Run Slideout Switch
- Power Lock Arms on All Slideout Rooms
- Roof R-Value Rating: 24
- Sidewall R-Value Rating: 11
- Floor R-Value Rating: 16
- Basement R-Value Rating: 4 (Included with Floor R-Value)
Windows, Awnings & Vents
- Frameless, Double-Pane, Tinted Safety-Glass Windows
- Fan-Tastic® Vent with Rain Sensor in Kitchen Area and Bathroom
- Driver’s-Side Power Window
- Girard® Power Bedroom and Slideout Window Awnings
- Two Girard® Integrated Power Box Side Awnings with Remote Controls
- Girard® Power Front Entrance Door Awning
- Skylight in Bathroom
Options
Air Conditioning & Heating
- Electric Heat Under Floor Tile in Kitchen, Bathroom and Living Areas*
Appliances & Accessories
- GE® 30" Profile™ Advantium® Microwave Oven
- KVH R-6 In Motion Satellite Dish, without Receiver-Dish Std/HD, Direct TV Std. and Bell Canada Compatable
- Winegard Automatic Open Face Satellite Dish, without Receiver-Direct TV Std/HD Compatable
- Winegard In Motion Dome Satellite Dish, without Receiver-Dish Std/HD, Direct TV Std. and Bell Canada Compatable
- Extra Monitor for Navigation System on Passenger Side
- Norcold 17 Cu. Ft. Four-Door Refrigerator with Ice Maker and Water Dispenser
- Norcold Freezer on Pullout Tray in Exterior Baggage
- Maytag Stackable Washer/240Volt Dryer in Full Length Cabinet*
- All Electric Operation with Whirlpool Refrigerator, Two Burner Electric Cooktop and Four Extra Batteries
- Fisher & Paykel DishDrawer*
- All-Electric Unit; with Frigidaire Refrigerator and Four Extra Batteries*
- Sony 40" LCD TV in Front Overhead Cabinet*
- Remote-Controlled Rearview Color Camera
- Sideview Cameras with Image Displayed on Rearview Monitor Screen
- External Entertainment Center with Sony 32" LCD TV, AM/FM Radio and CD Player on Adjustable Swing Arm
- Central Vacuum with Deluxe Tool Kit
- Security System
- CB Radio with Antenna
- Secondary Multiple Touch Screen Control
Cabinets & Features
- Ginger Glazed Cherry Hardwood Cabinets
- Milano Cherry Hardwood Cabinets
- Rattan Maple Glazed Hardwood Cabinets
- Ginger Glazed Cherry Hardwood Cabinets with High Gloss Finish
- Ultra Leather Hide-A-Bed Sofa with Air Mattress/Dinette Ensemble with Two Folding Chairs*
- Two Leather/Vinyl Recliners*
- Sleep Number Air Mattress for Main Bed
Electric Features
- Roof-Mounted Spot Light
- AGM Batteries
Exterior Features
- Large Storage Tray with Access from One Side or Either Side
- Power Sliding Storage Tray
Interior Features
- Polished-Porcelain Floor Tile Extended into Bedroom
- Power Duo Day/Night Window Shade System Throughout Living Area
- Power Silhouette Window Shades
Plumbing & Bath Features
- Assist Handle in Tub/Shower
- Fold Down Shower Seat
*Check with dealership on floorplan availability.
See us for a complete list of features & available options,
All standard features and specifications are subject to change!
