+24
-
30ft long
-
6,598 lbs
-
Sleeps 2
-
Murphy Bed

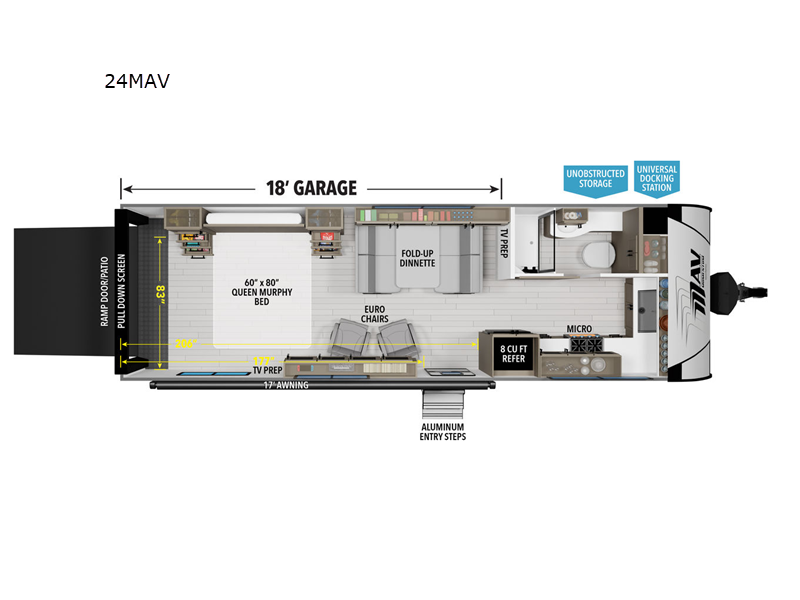

24MAV Floorplan
Specifications
| Sleeps | 2 | Length | 29 ft 11 in |
| Ext Width | 8 ft 4 in | Ext Height | 12 ft 2 in |
| Int Height | 7 ft | Interior Color | DESERT MAPLE |
| Hitch Weight | 1200 lbs | GVWR | 11000 lbs |
| Dry Weight | 6598 lbs | Fresh Water Capacity | 90 gals |
| Grey Water Capacity | 74 gals | Black Water Capacity | 37 gals |
| Tire Size | 15" | Furnace BTU | 30000 btu |
| Available Beds | Queen Murphy | Refrigerator Type | 12V |
| Refrigerator Size | 8 cu ft | Cooktop Burners | 3 |
| Shower Size | 27" x 36" | Number of Awnings | 1 |
| Garage Size | 18 ft | LP Tank Capacity | 20 lbs |
| Water Heater Type | Tankless | AC BTU | 15000 btu |
| Awning Info | 17' Power | Axle Count | 2 |
| Number of LP Tanks | 2 | Shower Type | Walk-In Shower |
| Electrical Service | 30 amp | VIN | 573TM3026S1221287 |
Description
Grand Design Momentum MAV toy hauler 24MAV highlights:
- Garage Pull Down Screen
- Euro Chairs
- 8 Cu. Ft. 12V Refrigerator
- Power Vent in Bath
This is the perfect toy hauler for two campers looking for adventure! Once your toys are unloaded using the ramp door, you will enjoy the patio system that will provide more living space. The queen Murphy bed will provide seating and sleeping space, and there is TV prep across from the bed if you want the option to watch movies in bed. Head to the front corner kitchen to make lunch on the three burner range, and leftovers can go in the 8 cu. ft. 12V refrigerator. You'll find the full bath in the other front corner, which will allow you to freshen up after a day of trail riding! This model also includes a fold-up dinette where you can dine each day, or you can take your plate outdoors to sit under the 17' power awning!
The Momentum MAV toy hauler travel trailers by Grand Design are designed to provide exactly what you need. The spacious garage provides tons of cargo space, with no wheel wells to get in the way. Additional storage includes magnetic storage door catches, underbed storage with a gas strut lift, and overhead consoles throughout. Conveniences like motion sensor lights and USB outlets will make your life easier, and you will be comfortable in all seasons with the 30K BTU furnace plus 15K BTU ducted air conditioning. The standard Solar Package comes with a 180W solar panel, a 40 Amp charge controller with Bluetooth, and a 12V refrigerator so you can go off-grid when the adventure calls for it.
- Power Awning * Detachable 50AMP Power Cord * Battery Disconnect Switch * HD TV Antenna * Power Tongue Jack * Heated & Enclosed Underbelly w/Suspended Tanks * Dual 20Lb LP Tanks w/ Cover * Easy Winterization * All in One Utility Center * LP Quick Connect * 180W Solar Panel * 40 Amp Charge Controller with Bluetooth * Battery Monitor * 12V Refrigerator * Microwave * 3 Burner Range * 15K Main AC Ducted * 60 x 80 Queen Murphy Bed * Undermount Spare Tire * Black Tank Flush * Magnetic Storage Door Catches * Foot Flush Toilet * Tinted Windows * Tankless Water Heater * Deep Seated Stainless Steel Sink * High Rise Faucet * LED Interior Lights * 30K BTU Furnace * Two Euro Chairs * 24" DoveTail Loading Ramp * Patio System * Loading Lights * No Wheel Wells in Garage * Garage Pull Down Screen
Features
Standard Features (2024)
Exterior
- Power Tongue Jack
- Solar Power Inlet
- 20# LP Bottles (2) with Cover
- Friction Hinge Entry Door
- Battery Kill Switch (Pass Thru)
- Oversized Tank Capacities
- Walk-on Roof
- Easy Access Low Point Drain Valves
- Main Floor Insulation (R-11)
- Undermount Spare Tire
- Magnetic Storage Door Catches
- Extended Grab Handle
- Power Awning
- Power Tongue Jack
- Dual 20#LP Tanks w/ Cover
- All in One Utility Center
- LP Quick Connect
Construction
- TPO Roof Membrane w/ 18 Year Warranty
- Insulated Storage Doors
- Side Walls Insulation (R-9)
- Slideroom Roof and End Wall Insulation (R-9)
- Roof Insulation (R-40)
- Tinted Windows
- TV Prep with Backer
- Heated & Enclosed Underbelly w/Suspended Tanks
- Dedicated Heat Duct to Subfloor
- Hi-Density Roof Insulation w/Thermofoil
- Moisture Barrier Floor Enclosure
- Elevated A-Frame Utility/Generator Rack
- No Wheel Wells in Garage
Interior
- Large Solid Bedroom Door (Master Suite)
- Residential Bedspread
- Cable/Sat Prep
- Walk-in Shower
- Power Vent Fan in Bath and Living Area
- Medicine Cabinet with Mirror
- ABS Tub Surround
- Solid Hardwood Drawer Fronts
- Solid Core Cabinet Stiles
- Pre-Drilled and Screwed Cabinetry
- Ball Bearing Full Extension Drawer Glides
- Residential Countertops
- Microwave
- 3-Burner Range with Oven
- USB Ports (2)
- Upgraded Residential Furniture
- More Power Outlets
- 84" Interior Height
- Solid Wood Drawer Fronts
- LED Interior Lights
Kitchen
- Deep Seated Stainless Steel Sink
Electrical
- Motion Sensor Lights in Key Areas
- Detachable 50amp Power Cord (N/A 22MAV)
- Battery Disconnect Switch
- HD TV Antenna
HVAC
- 15K Main AC Ducted
- 30K BTU Furnace
- Attic Vent
- EvenFlow Ductless Heating Throughout
Plumbing
- High-Capacity Water Pump
- Extra Large 2" Fresh Water Drain Valve
- 90 Gal. Fresh Water Capacity
- Black Tank Flush
- High Rise Faucet
- Tankless Water Heater
- Easy Winterization
Bedroom
- 60 x 80 Queen Bed
- Gas Strut Lift Bed Storage
Bathroom
- Foot Flush Toilet
Appliance
- 12V 8 Cu. Ft. Refer
Packages
Exterior Package
- Power Awning
- Detachable 50AMP Power Cord (27MAV Only)
- Detachable 30AMP Power Cord (22MAV Only)
- Battery Disconnect Switch
- HD TV Antenna
- Power Tongue Jack
- Heated & Enclosed Underbelly w/ Suspended Tanks
- Dedicated Heat to Subfloor
- High Density Roof Insulation w/ Thermofoil
- Moisture Barrier Floor Enclosure
- Attic Vent
- Dual 20lb LP Tanks with Cover
- EvenFlow Ductless Heating Throughout
- Easy Winterization
- All-in-One Utility Center
- LP Quick Connect
Solar Package
- 180W Solar Panel
- 40 Amp Charge Controller with Bluetooth
- Battery Monitor
- 12V Refrigerator
Luxury Interior Package
- 12V 8 cu. ft. Refrigerator
- Microwave
- 3-Burner Range
- 15k Ducted AC
- 84" Interior Height
- 60 x 80 Queen Bed
- 90 Gal. Fresh Water Capacity
- Undermount Spare Tire
- Black Tank Flush
- Magnetic Storage Door Catches
- Foot Flush Toilet
- Extended Grab Handle
- Gas Strut Lift Bed Storage
- Tinted Windows
- High Rise Faucet
- Solid Wood Drawer Fronts
- Tankless Water Heater
- Deep-Seated Stainless Steel Sink
- TV Prep with Backer
- LED Interior Lights
- Motion Sensor Lights in Key Areas
- 30K BTU Furnace
- Radial Tires
- Two Euro Chairs (22MAV)
Garage / Cargo Package
- 24" Dovetail Loading Ramp
- 2,500 lbs. Tie-downs Anchored into Chassis
- Patio System
- Loading Lights
- No Wheel Wells in Garage
- E-Z Lift Bunk Bed
- Garage Pull Down Screen
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
